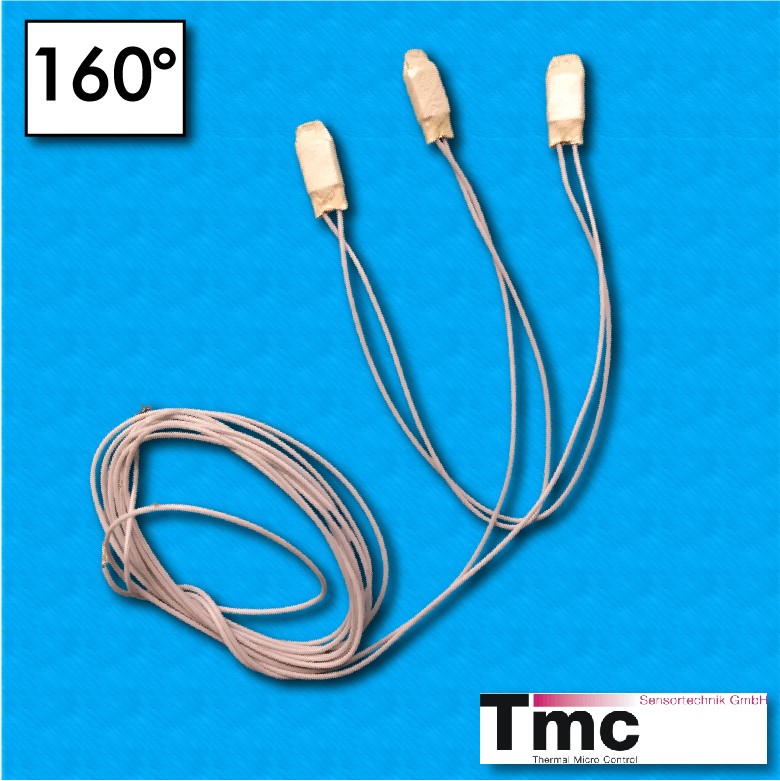

Thermal protector C1B, temperature 160°C, Radox cables 1000/185/185/1000 mm, rated current 2,5A
search
  • Thermal protector C1B, temperature 160°C, Radox cables 1000/185/185/1000 mm, rated current 2,5A

Thermal protector C1B, temperature 160°C, Radox cables 1000/185/185/1000 mm, rated current 2,5A

€13.20

Product code: PTC1-160-10001851851000-RX9

Quantity Price per piece
1-9 13,20 €
10-19 12,32 €
20-29 9,68 €
30-39 7,92 €
40+ 7,04 €

Volume discounts

Quantity Unit price You Save
10 €12.32 Up to €8.80
20 €9.68 Up to €70.40
30 €7.92 Up to €158.40
40 €7.04 Up to €246.40
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-160-10001851851000-RX9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
160°C
Reset temperature
120°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
1000/185/185/1000
Cable type
Radox
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
No
Approval
CQC
UL
VDE
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-160B-1000/185/185/1000-RX9
