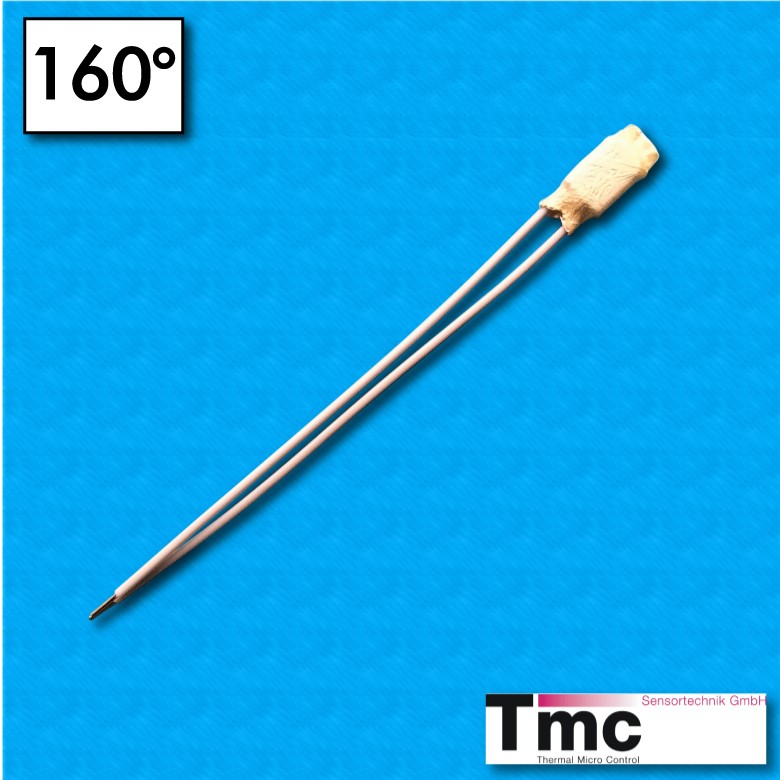

Thermal protector C4B - Temperature 160°C - Betatherm cables 100/100 mm - Rated current 2,5A
search
  • Thermal protector C4B - Temperature 160°C - Betatherm cables 100/100 mm - Rated current 2,5A

Thermal protector C4B - Temperature 160°C - Betatherm cables 100/100 mm - Rated current 2,5A

€3.68

Product code: PTC4-160-100100-BT9

Quantity Price per piece
1-9 3,68 €
10-19 3,43 €
20-29 2,70 €
30-39 2,21 €
40+ 1,96 €

Volume discounts

Quantity Unit price You Save
10 €3.43 Up to €2.50
20 €2.70 Up to €19.60
30 €2.21 Up to €44.10
40 €1.96 Up to €68.80
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC4-160-100100-BT9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
160°C
Reset temperature
120°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
100/100
Cable type
Betatherm
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
No
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C4B-160B-100/100-BT9L25-05G
Approval
CQC
UL
VDE
