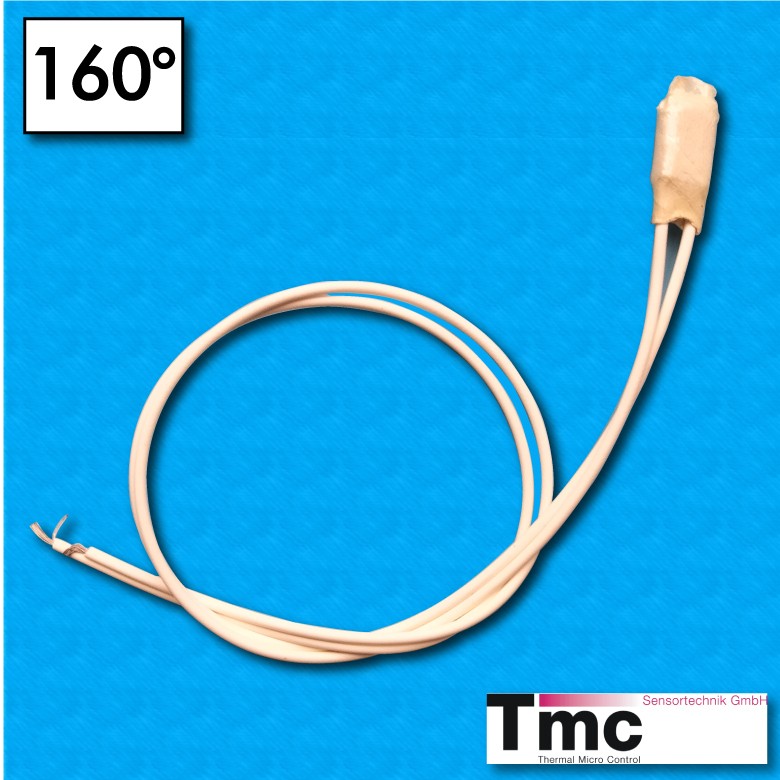

Thermal protector C4B - Temperature 160°C - Betatherm cables 300/300 mm - Rated current 2,5A
search
  • Thermal protector C4B - Temperature 160°C - Betatherm cables 300/300 mm - Rated current 2,5A

Thermal protector C4B - Temperature 160°C - Betatherm cables 300/300 mm - Rated current 2,5A

€7.50

Product code: PTC4-160-300300-BT9

Quantity Price per piece
1-9 7,50 €
10-19 7,00 €
20-29 5,50 €
30-39 4,50 €
40+ 4,00 €

Volume discounts

Quantity Unit price You Save
10 €7.00 Up to €5.00
20 €5.50 Up to €40.00
30 €4.50 Up to €90.00
40 €4.00 Up to €140.00
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC4-160-300300-BT9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
160°C
Reset temperature
120°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
300/300
Cable type
Betatherm
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
No
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C4B-160B-300/300-BT9L25-05G
Approval
CQC
UL
VDE
