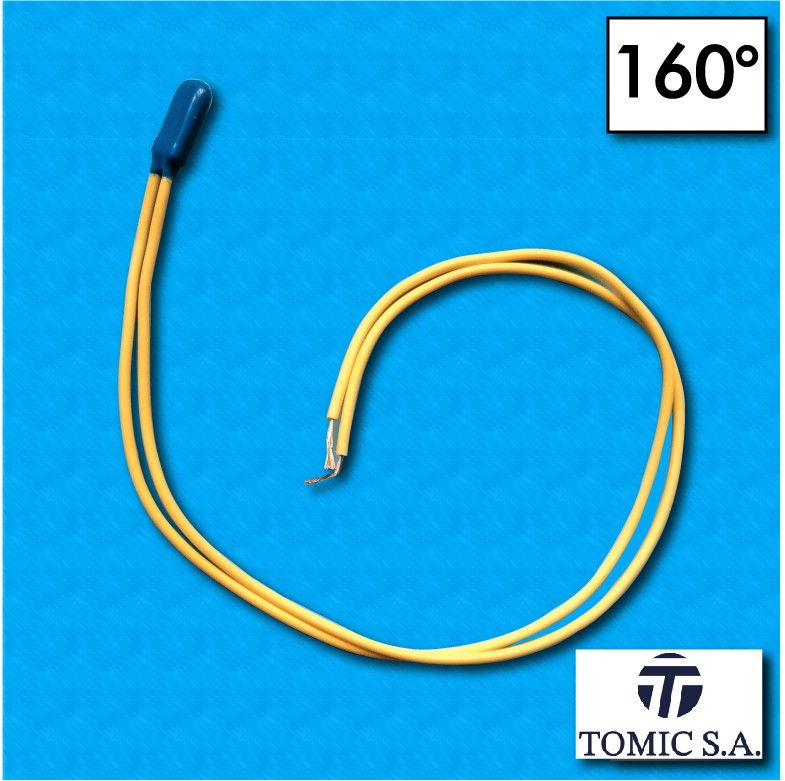

Thermal protector AM03 - Temperature 160°C - Cables 300/300 - Rated current 2,5A
search
  • Thermal protector AM03 - Temperature 160°C - Cables 300/300 - Rated current 2,5A

Thermal protector AM03 - Temperature 160°C - Cables 300/300 - Rated current 2,5A

€5.04

Product code: PTAM03-160-300300

Quantity Price per piece
1-9 5,04 €
10-19 4,20 €
20-29 3,36 €
30-39 2,52 €
40+ 1,89 €

Volume discounts

Quantity Unit price You Save
10 €4.20 Up to €8.40
20 €3.36 Up to €33.60
30 €2.52 Up to €75.60
40 €1.89 Up to €126.00
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTAM03-160-300300

Data sheet

Type of Product
Thermal protector
Model code
AM01, AM03, AM04, AM05, AM07
Opening temperature
160°C
Reset temperature
130°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
300/300
Color cables
Yellow
Dimensions in mm
18 x 8,6 x 4,5
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
3,6A / 250V (2.000 cycles)
Approval
UL
VDE
Manufacturer
TOMIC S. A.
Manufacturer code
AM03-160.05-300/300

Download

AM03 Scheda tecnica

Download (617.17KB)

AM03 Technical sheet

Download (617.2KB)
