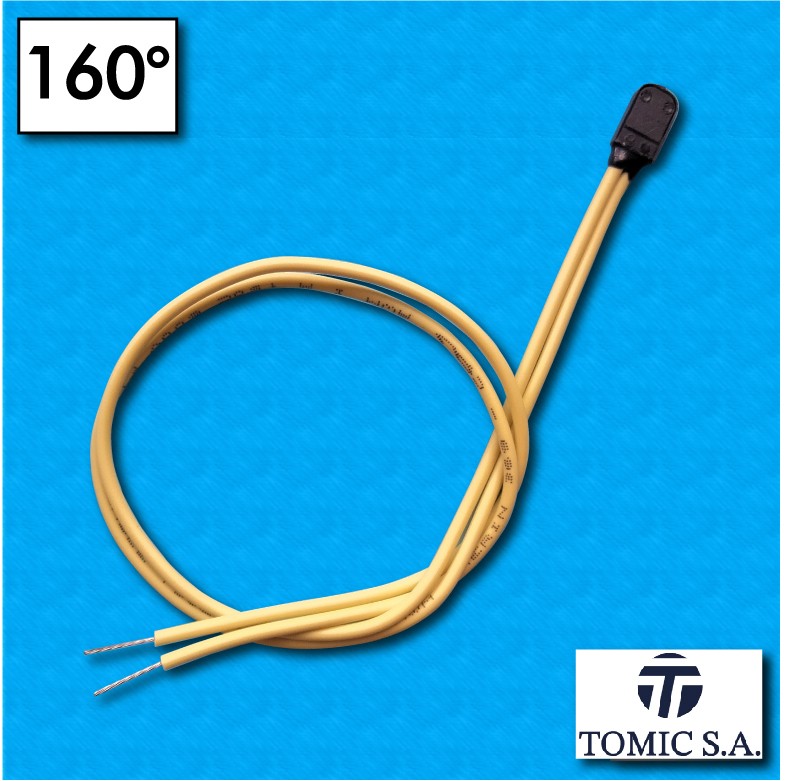

Thermal protector AM01 - Temperature 160°C - Cables 300/300 mm - Rated current 2,5A
search
  • Thermal protector AM01 - Temperature 160°C - Cables 300/300 mm - Rated current 2,5A

Thermal protector AM01 - Temperature 160°C - Cables 300/300 mm - Rated current 2,5A

€4.68

Product code: PTAM01-160-300300

Quantity Price per piece
1-9 4,68 €
10-19 3,90 €
20-29 3,12 €
30-39 2,34 €
40+ 1,76 €

Volume discounts

Quantity Unit price You Save
10 €3.90 Up to €7.80
20 €3.12 Up to €31.20
30 €2.34 Up to €70.20
40 €1.76 Up to €116.80
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTAM01-160-300300

Data sheet

Type of Product
Thermal protector
Model code
AM01, AM03, AM04, AM05, AM07
Opening temperature
160°C
Reset temperature
130°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
300/300
Color cables
Yellow
Dimensions in mm
7,3 x 14 x 3,3
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
3,6A / 250V (2.000 cycles)
Approval
UL
VDE
Manufacturer
ALBOL Electronic & Mechanical Products LTD
Manufacturer code
AM01-160.05-300/300

Download

AM01 Scheda tecnica

Download (617.91KB)

AM01 Technical sheet

Download (618.25KB)
