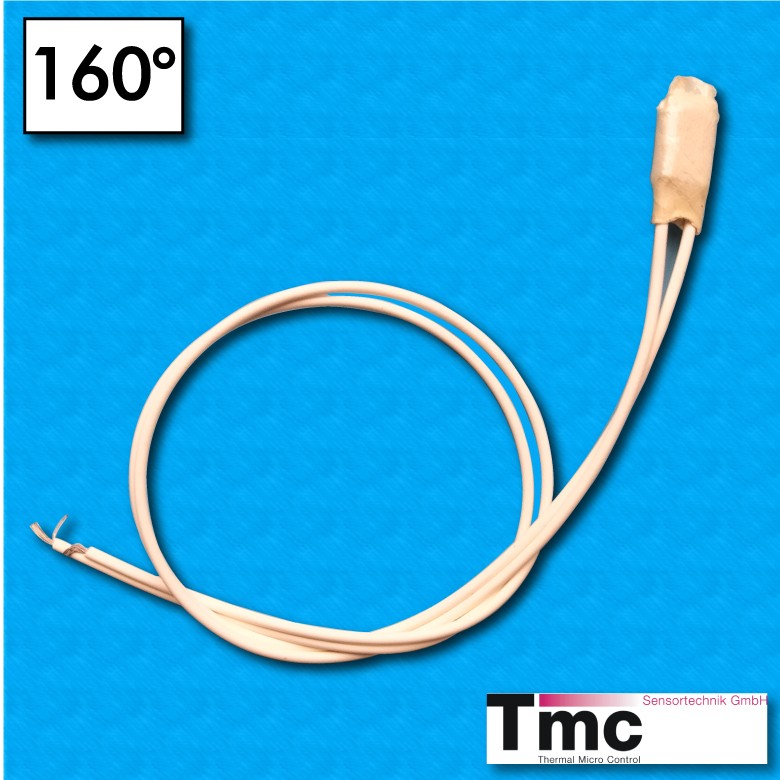

Thermal protector C1B - Temperature 160°C - FEP cables 300/300 mm - Rated current 2,5A
search
  • Thermal protector C1B - Temperature 160°C - FEP cables 300/300 mm - Rated current 2,5A

Thermal protector C1B - Temperature 160°C - FEP cables 300/300 mm - Rated current 2,5A

€9.00

Product code: PTC1-160-300300V-FE9

Quantity Price per piece
1-9 9,00 €
10-19 8,40 €
20-29 6,60 €
30-39 5,40 €
40+ 4,80 €

Volume discounts

Quantity Unit price You Save
10 €8.40 Up to €6.00
20 €6.60 Up to €48.00
30 €5.40 Up to €108.00
40 €4.80 Up to €168.00
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-160-300300V-FE9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
160°C
Reset temperature
120°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
300/300
Cable type
FEP
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
Yes
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-160B-300/300-FE9L25-05G-V
Approval
CQC
UL
VDE
