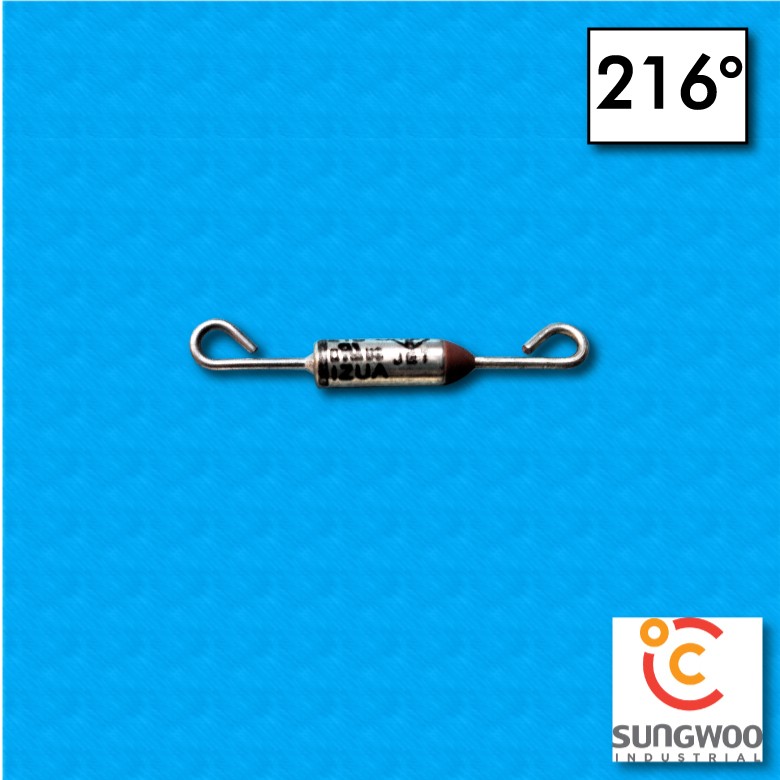

Thermalfuse SUNG WOO type SW1 - Temperature 216°C - Wires bent as in the figure - Nominal current 10/15A
search
  • Thermalfuse SUNG WOO type SW1 - Temperature 216°C - Wires bent as in the figure - Nominal current 10/15A

Thermalfuse SUNG WOO type SW1 - Temperature 216°C - Wires bent as in the figure - Nominal current 10/15A

€1.72

Product code: TF1-216-FORM

Quantity Unit price
1-9 1,72 €
10-19 1,55 €
20-29 1,29 €
30-39 1,03 €
40+ 0,86 €

Volume discounts

Quantity Unit price You Save
10 €1.55 Up to €1.70
20 €1.29 Up to €8.60
30 €1.03 Up to €20.70
40 €0.86 Up to €34.40
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

TF1-216-FORM

Data sheet

Type of Product
Thermalfuse
Model code
SW1
Working temperature
216°C
Wires lenght in mm
Folded as in the photo
Dimensions in mm
4 x 10
Rated current
10A-15A / 250V
Approval
C-UL
CCC
K-Mark
PSE
TUV
UL
VDE
Manufacturer
SUNGWOO Industrial CO.
Manufacturer code
SW-139T-216°-Forming

Download

Scheda tecnica SW1

Download (274.67KB)

Technical sheet SW1

Download (300.71KB)
