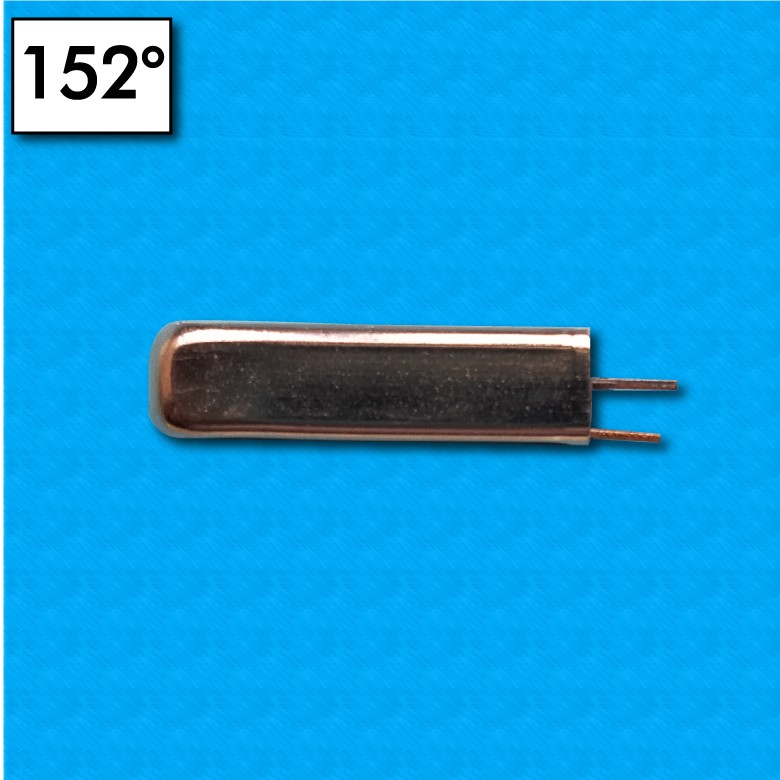

Thermal protector JRMD - Temperature 152°C - Without cables - Gold contacts - Rated current 5A - Reset at 1°/3°C
search
  • Thermal protector JRMD - Temperature 152°C - Without cables - Gold contacts - Rated current 5A - Reset at 1°/3°C
  • Thermal protector JRMD - Temperature 152°C - Without cables - Gold contacts - Rated current 5A - Reset at 1°/3°C

Thermal protector JRMD - Temperature 152°C - Without cables - Gold contacts - Rated current 5A - Reset at 1°/3°C

€6.60

Product code: PTJRMD-152-NW-NC

Quantity Price per piece
1-9 6,60 €
10-19 4,95 €
20-29 3,96 €
30-39 3,30 €
40+ 2,64 €

Volume discounts

Quantity Unit price You Save
10 €4.95 Up to €16.50
20 €3.96 Up to €52.80
30 €3.30 Up to €99.00
40 €2.64 Up to €158.40
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTJRMD-152-NW-NC

Data sheet

Type of Product
Thermal protector
Model code
JRMD, JRMA, JRMB
Opening temperature
152°C
Reset temperature
149°C / 151°C
Tolerance
±5°C
Contact position
Normally closed
Dimensions in mm
25 x 6,8 x 5,6
Rated current
5A 120V / 5A 24Vdc / 0,5A 220V
Number of cycles at 5A
100.000
Manufacturer code
JRMD152K-NO-GDNW
Approval
UL
