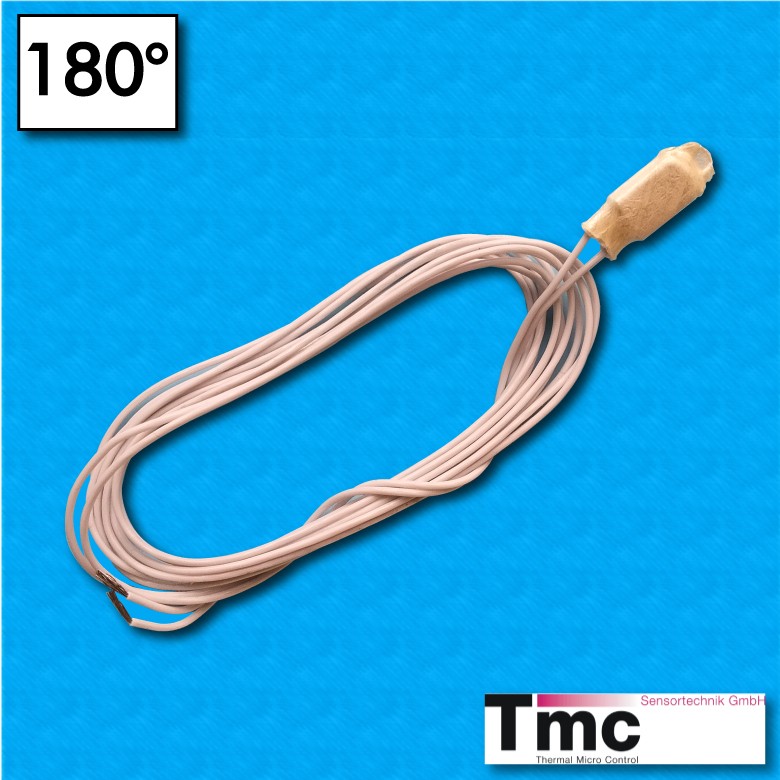

  • Thermal protector C1B - Temperature 180°C - FEP cables 1000/1000 mm - Rated current 2,5A

Thermal protector C1B - Temperature 180°C - FEP cables 1000/1000 mm - Rated current 2,5A

€13.50

Product code: PTC1-180-10001000V-FE9

Quantity Price per piece
1-9 13,50 €
10-19 12,60 €
20-29 9,90 €
30-39 8,10 €
40+ 7,20 €

Volume discounts

Quantity Unit price You Save
10 €12.60 Up to €9.00
20 €9.90 Up to €72.00
30 €8.10 Up to €162.00
40 €7.20 Up to €252.00
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-180-10001000V-FE9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
180°C
Reset temperature
140°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
1000/1000
Cable type
FEP
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
Yes
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-180B-1000/1000-FE9L25-05G-V
Approval
CQC
UL
VDE
