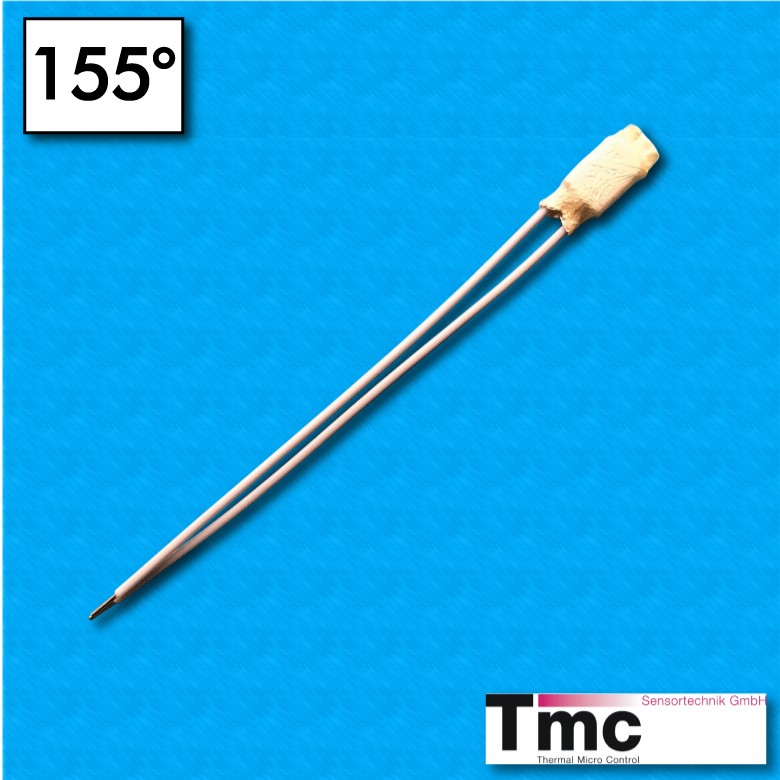

Thermal protector C1B - Temperatura 155°C - Betatherm cables 100/100 mm - Rated current 2,5A
search
  • Thermal protector C1B - Temperatura 155°C - Betatherm cables 100/100 mm - Rated current 2,5A

Thermal protector C1B - Temperatura 155°C - Betatherm cables 100/100 mm - Rated current 2,5A

€7.13

Product code: PTC1-155-100100V-BT9

Quantity Price per piece
1-9 7,13 €
10-19 6,65 €
20-29 5,23 €
30-39 4,28 €
40+ 3,80 €

Volume discounts

Quantity Unit price You Save
10 €6.65 Up to €4.80
20 €5.23 Up to €38.00
30 €4.28 Up to €85.50
40 €3.80 Up to €133.20
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-155-100100V-BT9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
155°C
Reset temperature
115°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
100/100
Cable type
Betatherm
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
Yes
Approval
CQC
UL
VDE
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-155B-100/100-BT9L25-05G-V
