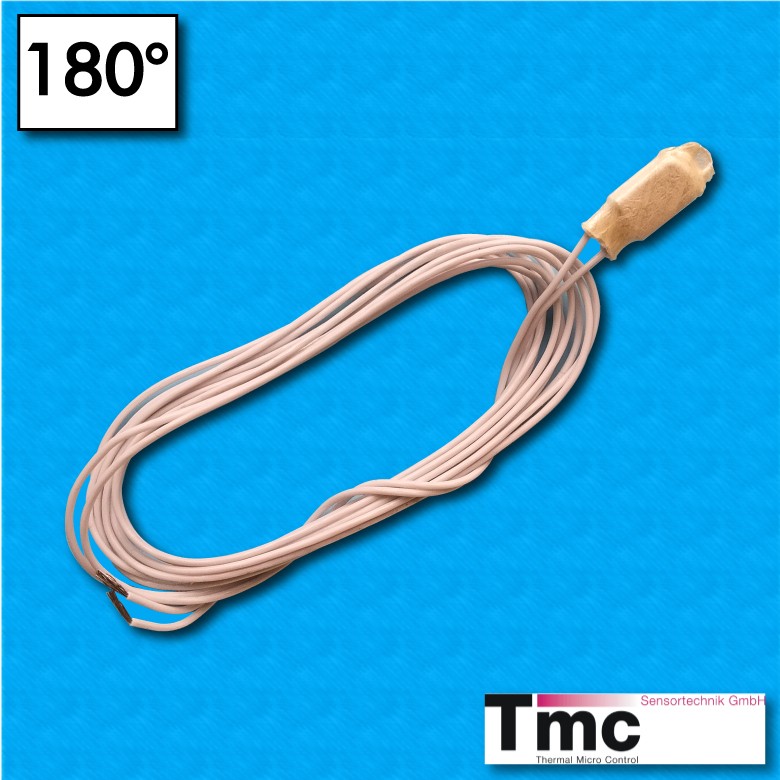

Thermal protector C1B - Temperature 180°C - FEP cables 500/500 mm - Rated current 2,5A
search
  • Thermal protector C1B - Temperature 180°C - FEP cables 500/500 mm - Rated current 2,5A

Thermal protector C1B - Temperature 180°C - FEP cables 500/500 mm - Rated current 2,5A

€9.90

Product code: PTC1-180-500500V-FE9

Quantity Price per piece
1-9 9,90 €
10-19 9,24 €
20-29 7,26 €
30-39 5,94 €
40+ 5,28 €

Volume discounts

Quantity Unit price You Save
10 €9.24 Up to €6.60
20 €7.26 Up to €52.80
30 €5.94 Up to €118.80
40 €5.28 Up to €184.80
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTC1-180-500500V-FE9

Data sheet

Type of Product
Thermal protector
Model code
C1, C4, C8
Opening temperature
180°C
Reset temperature
140°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
500/500
Cable type
FEP
Color cables
White
Dimensions in mm
12,7 x 8,2 x 4,2
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
6,3 A / 250V (3.000 cycles)
Suitable for vacuum impregnation
Yes
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
C1B-180B-500/500-FE9L25-05G-V
Approval
CQC
UL
VDE
