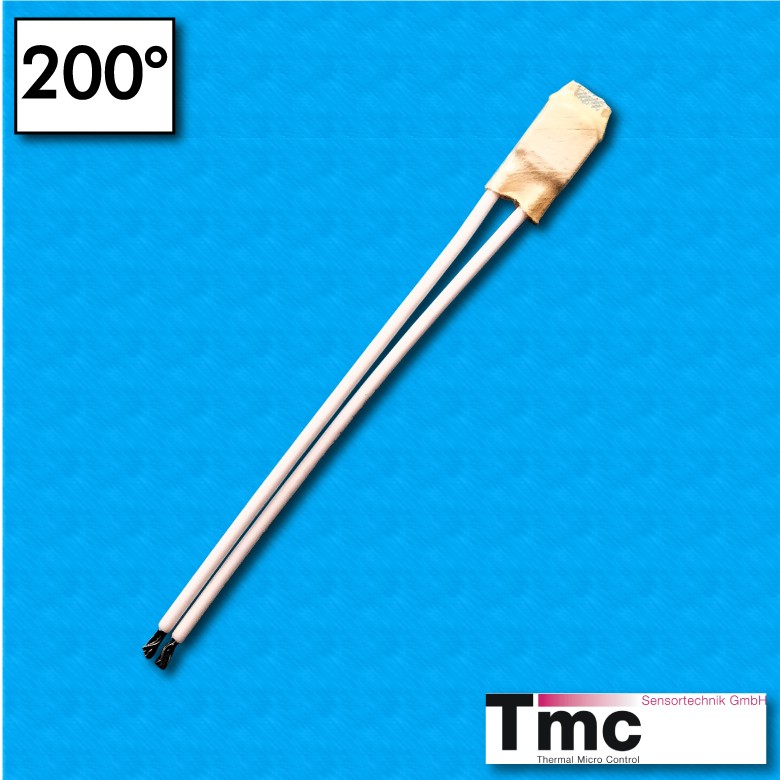

Thermal protector G2 - Temperature 200°C - FEP cables 100/100 mm - Rated current 11A
search
  • Thermal protector G2 - Temperature 200°C - FEP cables 100/100 mm - Rated current 11A

Thermal protector G2 - Temperature 200°C - FEP cables 100/100 mm - Rated current 11A

€11.83

Product code: PTG2-200-100100-FE9

Quantity Price per piece
1-9 11,83 €
10-19 10,92 €
20-29 8,19 €
30-39 6,37 €
40+ 5,46 €

Volume discounts

Quantity Unit price You Save
10 €10.92 Up to €9.10
20 €8.19 Up to €72.80
30 €6.37 Up to €163.80
40 €5.46 Up to €254.80
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTG2-200-100100-FE9

Data sheet

Type of Product
Thermal protector
Model code
G4
Opening temperature
200°C
Reset temperature
160°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
100/100
Cable type
FEP
Color cables
White
Dimensions in mm
13,2 x 9,5 x 4
Rated current
11A / 250V
Number of cycles at 11A
10.000
Suitable for vacuum impregnation
No
Approval
UL
VDE
Manufacturer
TMC Sensortechnik GmbH
Manufacturer code
G2B-200B-100/100-FE9L75-05G
