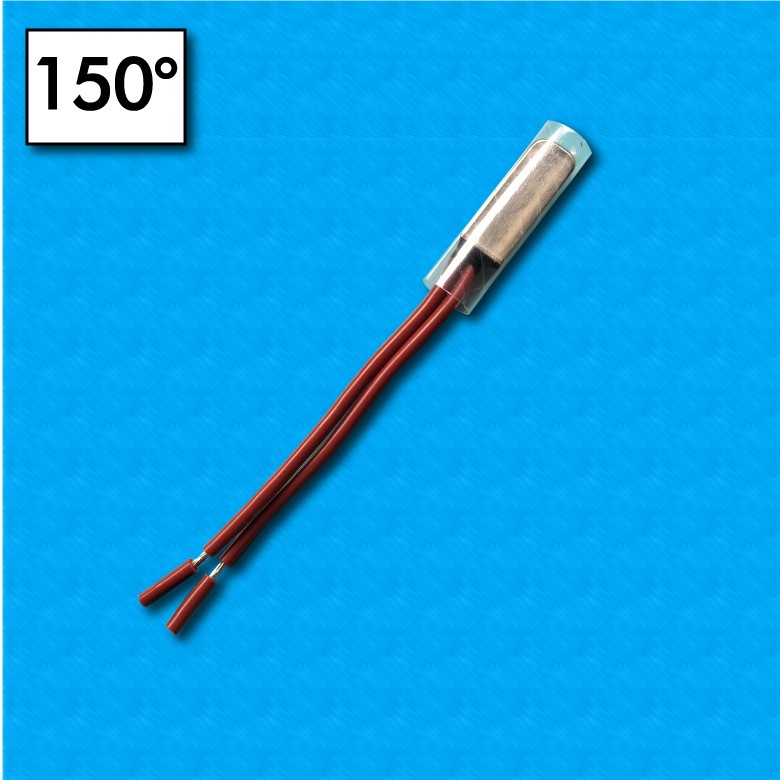

Thermal protector KW-E - Temperature 150°C - Cables 70/70 mm - Rated current 5A - With ATEX certificate (EN 60079-15)
search
  • Thermal protector KW-E - Temperature 150°C - Cables 70/70 mm - Rated current 5A - With ATEX certificate (EN 60079-15)
  • Thermal protector KW-E - Temperature 150°C - Cables 70/70 mm - Rated current 5A - With ATEX certificate (EN 60079-15)

Thermal protector KW-E - Temperature 150°C - Cables 70/70 mm - Rated current 5A - With ATEX certificate (EN 60079-15)

€3.80

Product code: PTKWE-150-7070

Quantity Price per piece
1-9 3,80 €
10-19 2,85 €
20-29 2,28 €
30-39 1,90 €
40+ 1,52 €

Volume discounts

Quantity Unit price You Save
10 €2.85 Up to €9.50
20 €2.28 Up to €30.40
30 €1.90 Up to €57.00
40 €1.52 Up to €91.20
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTKWE-150-7070

Data sheet

Type of Product
Thermal protector
Model code
KW-1T, KW-3B, KW-E
Opening temperature
150°C
Reset temperature
110°C±15°
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
70/70
Dimensions in mm
15,8 x 7,2 x 3,8
Rated current
5A / 250V
Number of cycles at 5A
5.000
Approval
CQC
UL
VDE
Manufacturer code
KW-E-150.05-70/70
