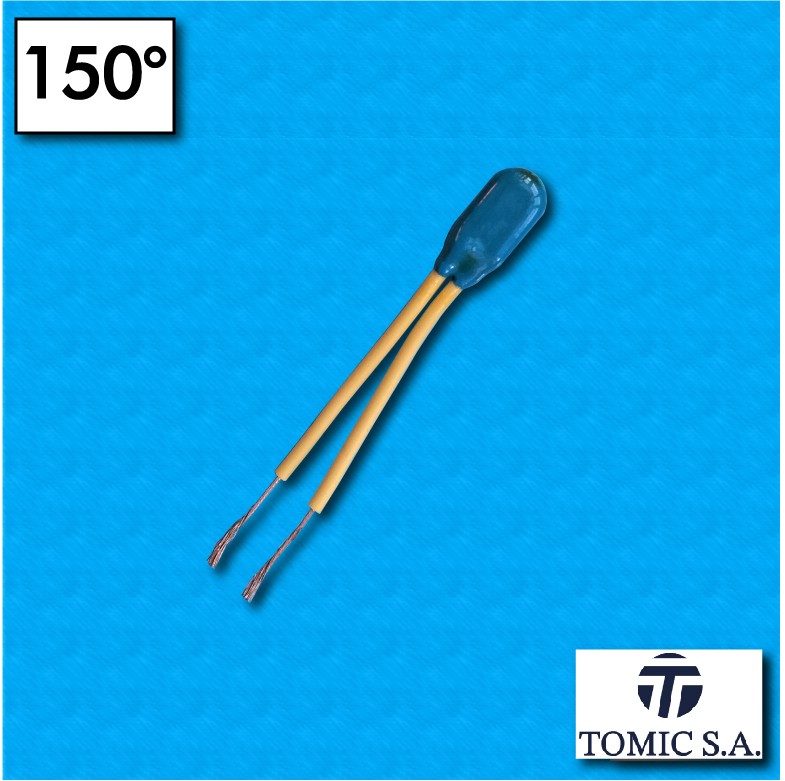

Thermal protector AM03 - Temperature 150°C - Cables 50/50 - Rated current 2,5A
search
  • Thermal protector AM03 - Temperature 150°C - Cables 50/50 - Rated current 2,5A

Thermal protector AM03 - Temperature 150°C - Cables 50/50 - Rated current 2,5A

€3.60

Product code: PTAM03-150-5050

Quantity Price per piece
1-9 3,60 €
10-19 2,70 €
20-29 2,16 €
30-39 1,80 €
40+ 1,44 €

Volume discounts

Quantity Unit price You Save
10 €2.70 Up to €9.00
20 €2.16 Up to €28.80
30 €1.80 Up to €54.00
40 €1.44 Up to €86.40
Quantity
  Shipping policies

Courier: UPS Costs: 20,90€ in EU, 50€ rest of world Delivery time: 5/7 days in EU, 5/15 rest of w

  Since 1999

We work with an extensive worldwide network of manufacturing companies.

  Customer service

Always by your side for pre and post-sales support.

PTAM03-150-5050

Data sheet

Type of Product
Thermal protector
Model code
AM
Opening temperature
150°C
Reset temperature
120°±15°C
Tolerance
±5°C
Contact position
Normally closed
Lead lenght in mm
50/50
Color cables
Yellow
Dimensions in mm
18 x 8,6 x 4,5
Rated current
2,5A / 250V
Number of cycles at 2,5 A
10.000
Maximum current
3,6A / 250V (2.000 cycles)
Manufacturer
ALBOL Electronic & Mechanical Products LTD
Manufacturer code
AM03-150.05-50/50
Approval
UL
VDE

Download

AM03 Scheda tecnica

Download (617.17KB)

AM03 Technical sheet

Download (617.2KB)
